Crash Rated Bollards – K4 (M30), K8 (M40), K12 (M50)
"Designed in Germany, Manufactured in India"
K4 CRASH RATED AUTOMATIC BOLLARDS (M30)
The M30 Automatic Bollard is a high security, retractable rising bollard that preventing unauthorised vehicle access, while allowing free pedestrian movement. It is designed according to internationally accepted standards such as ASTM, DOS, PAS68, and IWA14. This bollard also offers an emergency fast operation mode with a response time of 1.5 seconds.
K4 (M30) - Technical Specification
- Rating: K4 (M30)
- Blocking Height: 700 mm /1000 mm
- Blocking Diameter: 220 mm / 275mm
- Installation depth:Approx. 1500 mm
- Drive unit: Hydraulic / Pneumatic
- Power: 3-phase 400VAC 50Hz
- Opening/Closing Time: 3-5 Sec
- Safety: Line of Photocells, Loop Detectors, Microwave Radars (SMR 40)
- Electrical cabinet unit: In separate cabinet
- Works in temperature: -30°C to +60°C (optional +70°C)
- Optional equipment: Control console, PLC, Hydraulic Power Unit and others
K8 CRASH RATED AUTOMATIC BOLLARDS (M40)
MODEL NUMBER
Arjuna 800 (SAB 800)
The M40 Automatic Bollard is a high-security, retractable rising bollard that prevents unauthorized vehicle access while allowing free pedestrian movement. The units are designed according to internationally accepted standards such as ASTM, DOS, PAS68, and IWA14. This bollard also offers an emergency fast operation option with a response time of 1.5 seconds.
K8 (M40) - Technical Specification
- Rating: K8 (M40)
- Blocking Height: 900 mm /1000 mm
- Blocking Diameter: 220 mm / 275mm
- Installation depth:Approx. 1500 mm
- Drive unit: Hydraulic / Pneumatic
- Power: 3-phase 400VAC 50Hz
- Opening/Closing Time: 3-5 Sec
- Safety: Line of Photocells, Loop Detectors, Microwave Radars (SMR 40)
- Electrical cabinet unit: In separate cabinet
- Works in temperature: -30°C to +60°C (optional +70°C)
- Optional equipment: Control console, PLC, Inbuilt Hydraulic Power Unit and others
K12 CRASH RATED AUTOMATIC BOLLARDS (M50)
MODEL NUMBER
Arjuna 1200 (SAB 1200)
The M50 Automatic Bollard is a high-security, retractable rising bollard that prevents unauthorized vehicle access while allowing free pedestrian movement. The units are designed in accordance with internationally accepted standards such as ASTM, DOS, PAS68, and IWA14. This bollard also offers an emergency fast operation option with a response time of 2 seconds.
K12 (M50) - Technical Specification
- Rating : K12 (M50)
- Blocking Height: 1000 mm / 1200 mm
- Blocking Diameter: 275 mm / 355mm
- Installation depth:Approx. 2000 mm
- Drive unit: Hydraulic
- Power: 3-phase 400VAC 50Hz
- Opening/Closing Time: 3-6 Sec
- Safety: Line of Photocells, Loop Detectors, Microwave Radars (SMR 40)
- Electrical cabinet unit: In separate cabinet
- Works in temperature: -30°C to +60°C (optional +70°C)
- Optional equipment: Control console, PLC, Inbuilt Hydraulic Power Unit and others

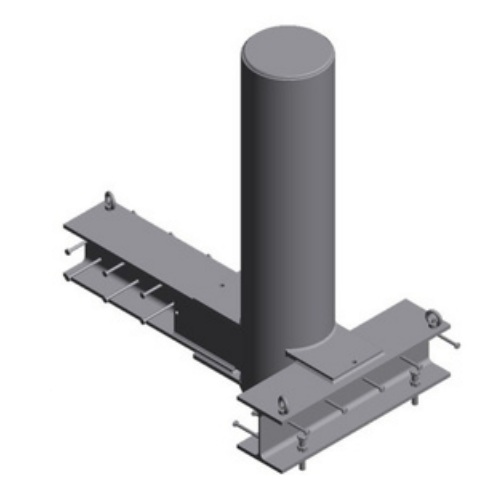

K4 SHALLOW MOUNTED FIXED BOLLARD (M30)
MODEL NUMBER
Arjuna 4 (Shallow 400)
K4 (M30) - Technical Specification
- Rating : K4 / M30 (6.8-ton @ 48 km/h)
- Foundation Depth: 300 mm (Shallow Mount)
- Bollard Height Above Ground: 1000 mm
- Bollard Diameter: 275 mm
- Material: Heavy-duty steel with anti-corrosion coating
- Finish Options: Powder-coated / Stainless Steel
- Compliance: BIS, DOS, PAS68 & IWA14

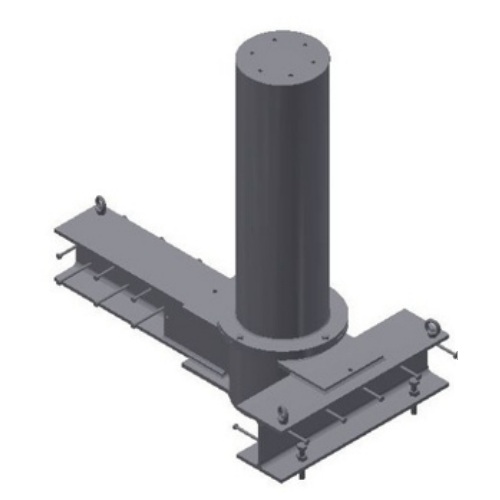

K8 SHALLOW MOUNTED FIXED BOLLARD (M40)
K8 (M40) - Technical Specification
- Rating : K8 / M40 (7.5-ton @ 64 km/h)
- Foundation Depth: 350 mm (Shallow Mount)
- Bollard Height Above Ground: 1000 mm
- Bollard Diameter: 275 mm
- Material: Reinforced steel core with protective housing
- Finish Options: Powder-coated / Stainless Steel
- Compliance: BIS, DOS, PAS68 & IWA14

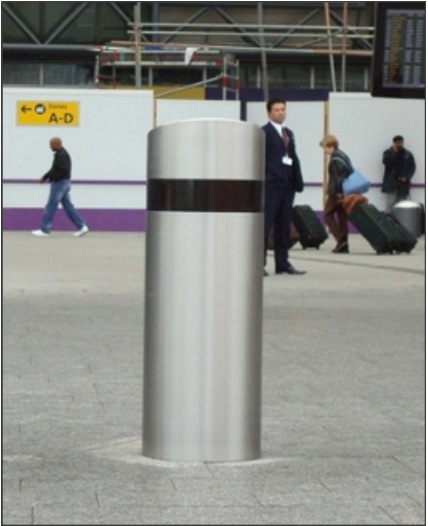

K12 SHALLOW MOUNTED FIXED BOLLARD (M50)
MODEL NUMBER
Shallow 1200
K12 (M50) - Technical Specification
- Crash Rating: K12 / M50 (6.8-ton @ 80 km/h)
- Foundation Depth: 400 mm (Shallow Mount)
- Bollard Height Above Ground: 1000 mm
- Bollard Diameter: 275 mm
- Material: Heavy-duty reinforced steel with anti-ram core
- Finish Options: Powder-coated / Stainless Steel
- Compliance: BIS, DOS, PAS68 & IWA14
Why Choose Secure India?
Trusted Leader in HVM & Entrance Control Solutions
Secure India is a top manufacturer and supplier of high-quality Hostile Vehicle Mitigation (HVM) and Entrance Control products across India and globally.
- ✓ On-Time Delivery: Fast and reliable delivery – no matter where you are.
- ✓ Competitive Pricing: Affordable solutions without compromising on quality.
- ✓ Modern Technology: Engineered with advanced technology for superior security and aesthetic appeal.
We are your one-stop destination for Bollards, Barriers, Gates, Road Blockers and more.
📞 Available 24x7 – Contact us for any inquiry or requirement.
We don’t just supply—we engineer.
At Secure India, we are an Original Range Manufacturer (ORM) committed to delivering customized, performance-driven security solutions tailored to your site-specific needs.
From design and development to testing and deployment, we ensure every product meets the highest standards of safety and reliability. Whether you require simulation, on-site adaptation, or crash-tested assurance, we build solutions that protect what matters most.
Have questions? Visit our FAQs for more information on installation, maintenance, and support.
