"Designed in Germany, Manufactured in India"
Turnstiles are classic and safe way to protect guarded zones and areas. The BAR tripod turnstiles manufactured by Vertex offer reliable, comfortable and cost-effective solution of access control in areas with intense movement of people. The selection of types, customized design and alternative materials conveniently integrate the BAR turnstile into any environment, from harsh to exclusive.

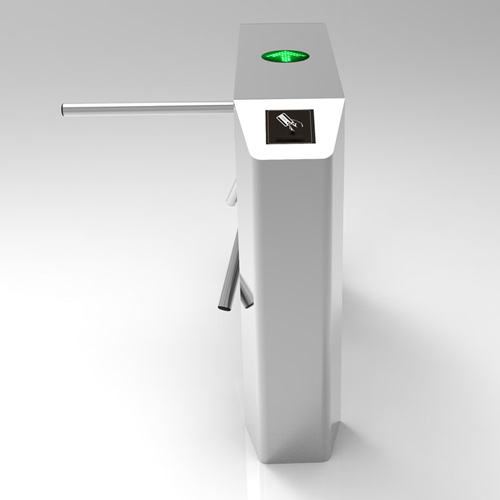

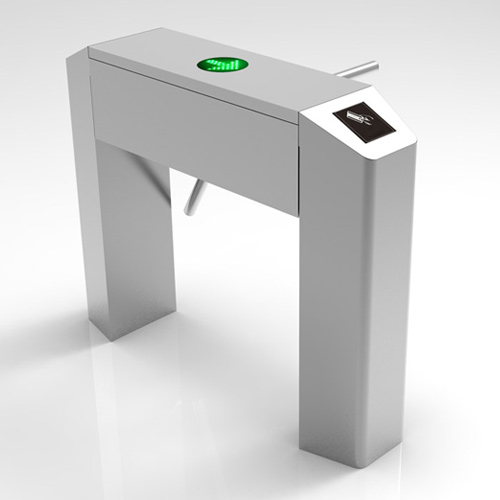

| Technical data | STT-100S / STT-100M |
| Application | Indoor / outdoor(with canopy) |
| Housing variant | long |
| Passage width | 550 mm |
| Mechanism | Semi-Automatic / Fully Automatic |
| Voltage | 110 - 240 VAC, 50/60 Hz |
| Power consumption | Max. 73 W |
| Duty cycle | 100% |
| Housing dimensions (L x W x H) | 1200 x 280 x 980 mm |
| Enclosure rating | IP 54 (Tested by Indian Government Approved NABL Accredited LAB) |
| Weight | Approx. 55 kg |
| Temperature range | -25 to +60° C |
| MCBF | 5 Million |

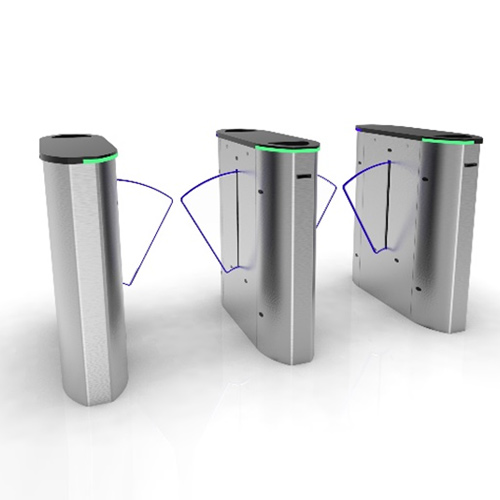

| Technical data | SFB -300 |
| Passage width | 550 mm |
| Opening/closing time | 0.4 s |
| Drive technology | Motor Drive |
| Voltage | 110-240 VAC, 50/60 Hz |
| Power consumption | Max. 200 W |
| Duty cycle | 100% |
| Housing dimensions (L x W x H) | 1400 x 280 x 980 mm |
| Enclosure rating | IP 54 (Tested by Indian Government Approved NABL Accredited LAB) |
| Temperature range | -25 to +60 °C |
| MCBF | 5 Million |
| Technical data | SFB -400 |
| Passage width | 600 mm |
| Opening/closing time | 0.6 s |
| Drive technology | Motor Drive |
| Voltage | 110-240 VAC, 50/60 Hz |
| Power consumption | Max. 200 W |
| Duty cycle | 100% |
| Housing dimensions (L x W x H) | 1400 x 280 x 980 mm |
| Enclosure rating | IP 54 (Tested by Indian Government Approved NABL Accredited LAB) |
| Temperature range | -25 to +60 °C |
| Technical data | SSG-600 |
| Passage width | 550 mm / 900 MM |
| Opening/closing time | 0.3 s |
| Drive technology | MHTM™ |
| Voltage | 110-240 VAC, 50/60 Hz |
| Power consumption | Max. 200 W |
| Duty cycle | 100% |
| Housing dimensions (L x W x H) | 1400 x 180 x 955 mm |
| Housing material | SS304 / SS316 |
| Enclosure rating | IP 54 (Tested by Indian Government Approved NABL Accredited LAB) |
| Temperature range | -20 to +60 °C |
| Technical data | SSG-600 |
| Passage width | 550 mm / 900 MM |
| Opening/closing time | 0.3 s |
| Drive technology | MHTM™ |
| Voltage | 110-240 VAC, 50/60 Hz |
| Power consumption | Max. 200 W |
| Duty cycle | 100% |
| Housing dimensions (L x W x H) | 1400 x 180 x 955 mm |
| Housing material | SS304 / SS316 |
| Enclosure rating | IP 54 (Tested by Indian Government Approved NABL Accredited LAB) |
| Temperature range | -20 to +60 °C |
