"Advanced Entrance Control Solutions, Made in India"
Secure Innovative Solutions LLP manufactures high-security hydraulic road blockers in Ahmedabad, India, for controlled vehicle access and Hostile Vehicle Mitigation applications. The range includes K4/M30, K8/M40 and K12/M50 configurations for different project and security requirements. Impact-test status, applicable standards and performance ratings are stated individually on the relevant product page and should be read together with the tested product configuration.
Verified impact-tested product: BHISHMA 1200 (SBR 1200) has been independently impact tested and rated to ISO 22343-1:2023. Its certificate records the full performance rating as ISO 22343-1:2023 Blocker V/7200[N2A]/80/90:-0.3/10.1. Other road blocker configurations must be assessed against their own applicable test or engineering evidence and are not represented on this overview page as having the same rating.
Model Number
The Bhishma 400 (SBR-400) is a high-security hydraulic road blocker configuration intended for controlled vehicle access applications. Technical dimensions and operating features shown below describe the offered configuration; any impact-test or performance-rating claim must be supported by the applicable product-specific evidence.
| Crash Rating | K4 / M30 Configuration |
| Blocking Height | Typically 900 mm (as per standard product configuration) |
| Blocking Width | From 1000 mm to 4000 mm |
| Installation Depth / Foundation Depth | Approx. 250 mm |
| Drive | Hydraulic with power unit |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–5 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Hydraulic Power Unit and others |
Model Number
The Bhishma 800 (SBR 800) is a high-security hydraulic road blocker configuration intended for demanding controlled vehicle access applications. Technical dimensions and operating features shown below describe the offered configuration; any impact-test or performance-rating claim must be supported by the applicable product-specific evidence.
| Crash Rating | K8 / M40 Configuration |
| Blocking Height | Typically 1000 mm (as per standard product configuration) |
| Blocking Width | From 1000 mm to 6000 mm |
| Installation Depth / Foundation Depth | Approx. 350 mm |
| Drive | Hydraulic with power unit |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–5 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Hydraulic Power Unit and others |
Model Number

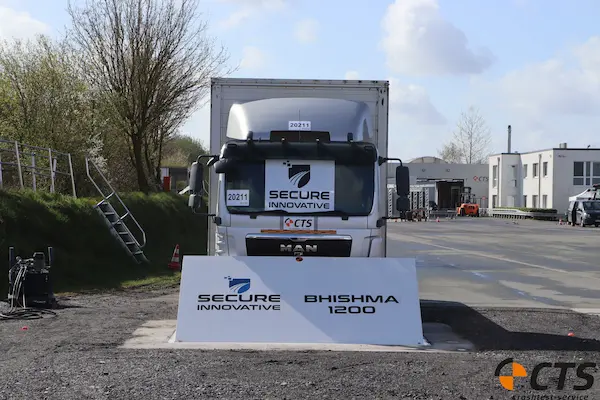

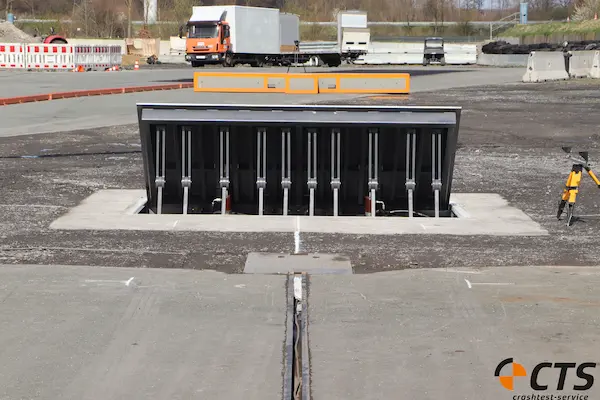

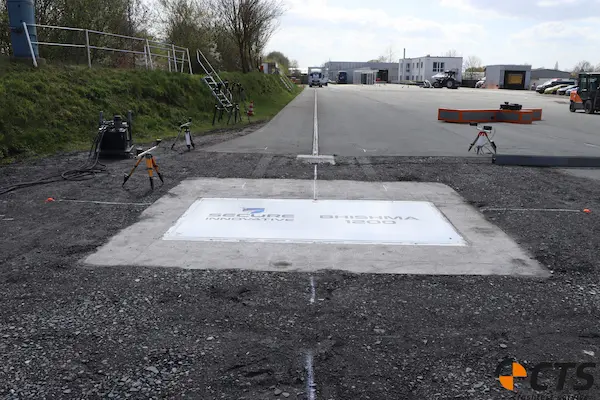

The BHISHMA 1200 (SBR 1200) is independently impact tested and rated to ISO 22343-1:2023. The CTS certificate records a 7,200 kg N2A test vehicle at 80 km/h and 90° impact, with the full performance rating ISO 22343-1:2023 Blocker V/7200[N2A]/80/90:-0.3/10.1. Tested/rated dimensions and installation configuration should be confirmed from the associated CTS test report.
| Crash Rating | ISO 22343-1:2023 — V/7200[N2A]/80/90:-0.3/10.1 |
| Blocking Height | Typically 1000 mm (as per standard product configuration) |
| Blocking Width | From 1000 mm to 6000 mm |
| Installation Depth / Foundation Depth | Approx. 1500 mm |
| Drive | Hydraulic with power unit |
| Power | 3-phase 400VAC 50Hz |
| Opening/Closing Time | 3–5 Sec |
| Safety | Line of Photocells, Loop Detectors, Microwave Radars (SMR 40) |
| Electrical Cabinet Unit | In separate cabinet |
| Operating Temperature | -30°C to +60°C (optional +70°C) |
| Optional Equipment | Control console, PLC, Hydraulic Power Unit and others |
The models below are different product configurations within the Secure road blocker range. Do not interpret the K4/M30 or K8/M40 labels as an ISO 22343, ASTM F2656, PAS 68 or IWA 14 certification unless a product-specific test certificate or accepted assessment is stated on the relevant product page. BHISHMA 1200 has the verified ISO 22343-1:2023 rating shown below.
| Feature | K4 – Bhishma 400 | K8 – Bhishma 800 | K12 – Bhishma 1200 |
|---|---|---|---|
| Crash Rating | K4 / M30 | K8 / M40 | K12 / M50 |
| Vehicle Impact Speed | See product-specific evidence | See product-specific evidence | 80 km/h (verified test) |
| Vehicle Weight | See product-specific evidence | See product-specific evidence | 7,200 kg [N2A] (verified test) |
| Penetration | See product-specific evidence | See product-specific evidence | Full rating: -0.3/10.1 |
| Foundation Depth | ~250 mm | ~350 mm | ~1500 mm |
| Blocking Width | 1000–4000 mm | 1000–6000 mm | 1000–6000 mm |
| EFO Response Time | 1 second | 1.5 seconds | 1.5 seconds |
| Compliance | Product-specific evidence required | Product-specific evidence required | ISO 22343-1:2023 |
| Best For | Corporate, Commercial | Airports, Embassies | Military, Critical Infra |
| Get a Quote | Request → | Request → | Request → |
Not sure which model fits your threat level? Talk to our security engineer →
Impact ratings apply to the specific product configuration tested or otherwise formally assessed. Dimensions, foundations, infill, widths and other variants must not be assumed to retain the same impact rating unless supported by applicable evidence.
Verified on this range: BHISHMA 1200 (SBR 1200) — ISO 22343-1:2023, performance rating V/7200[N2A]/80/90:-0.3/10.1, CTS certificate TC-22678-5024-20211-EN.
Our security solutions are deployed across a wide range of industries — from critical government infrastructure to commercial facilities.
A road blocker is a hydraulically operated vehicle security barrier that rises from the ground to restrict unauthorized vehicle access. For an impact-rated product, the applicable test standard, full performance rating and tested configuration should be stated exactly as supported by the test evidence.
K4/M30, K8/M40 and K12/M50 are used on this website to distinguish road blocker configurations. They should not be read as identical certification claims across the range. BHISHMA 1200 (SBR 1200) has verified independent testing to ISO 22343-1:2023; other configurations must be supported by their own applicable evidence.
EFO (Emergency Fast Operation) is a high-speed response mode that raises the road blocker in 1 second (K4) or 1.5 seconds (K8/K12) during a security alert. This enables immediate lockdown without delay when a threat is detected, making it critical for high-risk installations such as embassies, checkpoints, and government facilities.
K4 road blockers require approximately 250 mm of foundation depth, K8 approximately 350 mm, and K12 approximately 1500 mm. The shallow-mount K4 and K8 models are ideal for retrofit projects and sites with underground utilities or limited excavation access.
Impact-test status is stated product by product. BHISHMA 1200 (SBR 1200) is independently impact tested and rated to ISO 22343-1:2023 with performance rating V/7200[N2A]/80/90:-0.3/10.1. Other configurations should only be treated as impact rated where product-specific evidence is stated.
Yes. All models support integration with access control systems, RFID readers, CCTV, intercom, and third-party security platforms. The electrical cabinet can be located separately from the blocker unit, giving flexibility in control room design.
The K4 model covers widths from 1,000 mm to 4,000 mm. The K8 and K12 models cover widths from 1,000 mm to 6,000 mm. Custom widths beyond the standard range are available through our engineering team — contact us with your site drawings.
Yes. Secure Innovative provides 24×7 after-sales support with dedicated field engineers across India. Annual maintenance contracts (AMC) are available. Hydraulic consumables and spare parts are stocked at our Ahmedabad facility for fast dispatch.
