Tyre killer / Spike Barrier

"Designed in Germany, Manufactured in India"

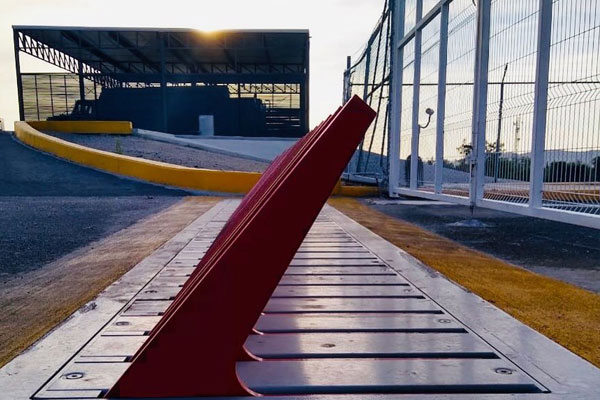

Tyre Killer / Axel Breaker

Model No. : STK 100

Secure high security Tyre Killer Axel Breaker with level of protection K12. That tyre killer blocks 7,5 tonne vehicle at speed 80km/h.heavy duty steel spikes determined to destroy tyres, suspension and axles of a vehicle in case of unauthorized intrusion. When this Tyre Killers is equipped in EFO it opens in 1 second.

TECHNICAL SPECIFICATION

  • Installation depth : Approx. 550 mm
  • Height of blocking Killer : 450 mm
  • Thickness of Killers :  25 mm
  • Distance between Killers :  200 mm
  • Drive : Hydraulic with power unit
  • Power : 3-phase 400VAC 50Hz
  • Safety : Line of Photocells, Loop Detectors, Microwave Radars (SMR 40)
  • Electrical cabinet unit :  In separate cabinet
  • Works in temperature :  -30°C to +60°C (optional +70°C)
  • Optional equipment :  Control console, PLC, Hydraulic Power Unit and others

TYRE KILLERS /SPIKE BARRIERS

Model No. : STK200E / STK200H

Secure Electro-Hydraulic/ Electro-Mechanical tyre killer’s works in one way/ two direction to stop theunauthorized intrusion. It can be installed in every place, it is design especially for defence, Critical Infrastructures & Parking lots. This tyre killer is shallow mount.

TECHNICAL SPECIFICATION

  • Mechanism : Electro Hydraulic / Electro Mechanical
  • Installation Depth: 355 mm
  • Height of spikes above the ground: 100 - 160 mm
  • Thickness of spikes: 25 mm
  • Spike Type: Round Spike
  • Width: From 1 to 6 meter
  • Opening/Closing Time: 1- 2 Sec





Tyre Killers /Spike Barriers

Model No. : STK400E / STK400H

Secure Electro-Hydraulic/ Electro-Mechanical tyre killer’s works in one way/ two direction to stop the unauthorized intrusion. It can be installed in every place, it is design especially for defence, Critical Infrastructures & Parking lots. This tyre killer is shallow mount.

TECHNICAL SPECIFICATION

  • Mechanism : Electro Hydraulic / Electro Mechanical
  • Installation Depth : 355 mm
  • Height of spikes above the ground : 100 - 160 mm
  • Thickness of spikes : 10 mm
  • Spike Type : Flat Spike
  • Width : From 1 to 6 meter
  • Opening/Closing Time : 1- 2 Sec

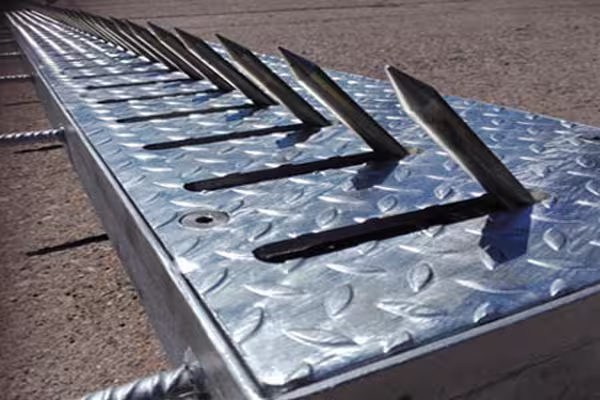

Tyre Killers /Spike Barriers

Model No. : STK600M

Secure Manual tyre killer’s works in one way/ two direction to stop the unauthorized intrusion. It can be installed in every place and operated by manual lever, it is design especially for defence, Critical Infrastructures & Parking lots. This tyre killer is shallow mounted. All construction made of steel and protected by hot dip galvanization or paint in any RAL colour.

TECHNICAL SPECIFICATION

  • Mechanism : Manual (operated by Lever)
  • Installation Depth : 200 mm
  • Height of spikes above the ground : 100 mm
  • Thickness of spikes : 8-10 mm
  • Spike Type : Round Spike
  • Width : From 1 to 8 meter

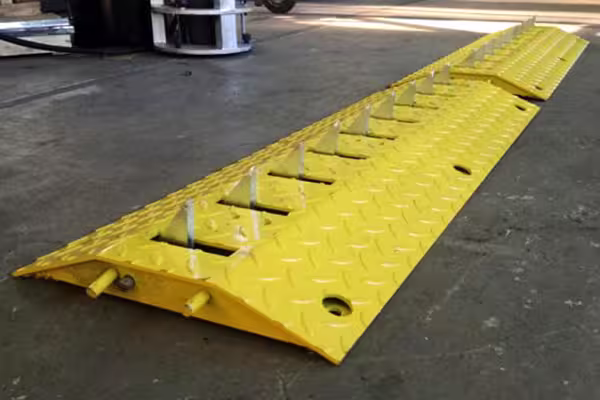

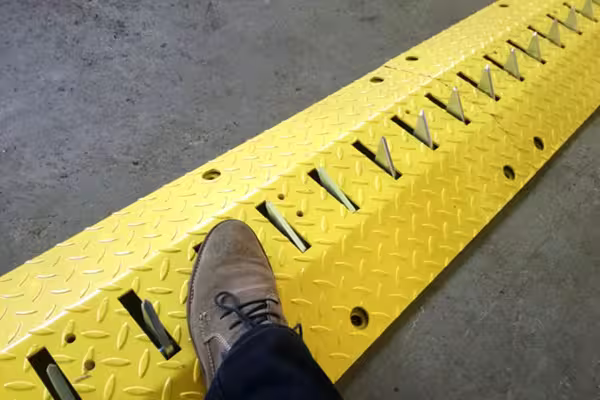

HEAVY ONE WAY TYRE KILLER / SPIKE

Model No. : STK800M

Secure Gravitational tyre killer’s works in one way to stop the unauthorized intrusion. It can be installed in every place, it is design especially for defence, Critical Infrastructures & Parking lots. This tyre killer is surface mounted. All construction made of steel and protected by hot dip galvanization or paint in any RAL colour.

TECHNICAL SPECIFICATION



  • Mechanism : Spring loaded Mechanism (Gravitational)
  • Installation Type : Surface Mounted
  • Height of spikes above the ground : 50 mm
  • Length : 900 mm
  • Width : 400 mm
  • Axel Load :  25 Tons
