"Maximum Vehicle Mitigation Security for Critical Infrastructure"
Secure Innovative supplies hydraulic rising bollards for hostile vehicle mitigation (HVM) and controlled vehicle access. The available independent test report for ARJUNA 1200 (SAB 1200) documents testing to ISO 22343-1:2023 for the specific product and installation configuration described in the report.
The report records a target 7,200 kg N2A vehicle at 80 km/h. The actual test vehicle mass was 7,186 kg, the measured impact speed was 79.6 km/h, and the measured impact angle was 90.3°. The report's performance classification is V/7200[N2A]/80/90:0.9/34.7.
The ARJUNA 1200 uses a hydraulic retractable mechanism and can be considered for access-controlled entrances at critical infrastructure, government facilities, airports, data centres, industrial sites and other locations subject to a project-specific security assessment.
The stated impact classification applies to the tested configuration only. Do not infer equivalent performance under ASTM F2656, PAS 68, IWA 14-1, DOS or other standards unless separate, applicable product-specific evidence is available.
Model Number
Test standard: ISO 22343-1:2023
Tested product: Hydraulic bollard “ARJUNA 1200” (SAB 1200)
Test condition: N2A vehicle; target mass 7,200 kg (actual test mass 7,186 kg); target speed 80 km/h (actual 79.6 km/h); impact angle 90.3°
Performance classification: V/7200[N2A]/80/90:0.9/34.7
Test report reference: 22678-5024-20208-EN
Test date: 15 April 2026
Important: The test result applies specifically to the ARJUNA 1200 configuration and foundation arrangement documented in the test report. The report documents testing in accordance with ISO 22343-1:2023. Equivalence to K12/M50 ratings or certification under ASTM F2656, PAS 68, IWA 14-1, or DOS must not be inferred from this classification alone.
The ARJUNA 1200 (SAB 1200) is a hydraulic retractable vehicle security bollard. The available ISO 22343-1:2023 report records the tested product, its foundation arrangement and the measured crash-test result. Access-control integrations and operating-time options should be confirmed against the approved technical datasheet for the specific project configuration.
| Model | ARJUNA 1200 (SAB 1200) |
| Test standard | ISO 22343-1:2023 |
| Test report reference | 22678-5024-20208-EN |
| ISO performance classification | V/7200[N2A]/80/90:0.9/34.7 |
| Test vehicle | N2A; target mass 7,200 kg; actual test mass 7,186 kg |
| Impact speed | 80 km/h target; 79.6 km/h measured |
| Impact angle | 90° target; 90.3° measured |
| Kinetic energy at impact | 1,757 kJ |
| Vehicle penetration | 0.5 m static; 0.9 m dynamic (as recorded in the report) |
| Blocking height | 1,200 mm above the road surface when fully extended |
| Bollard outer diameter | 358 mm |
| Steel tube wall thickness | 25 mm |
| Test foundation dimensions | 1.60 m (L) × 1.60 m (W) × 2.16 m (D) |
| Foundation excavation depth | 2.26 m |
| Foundation concrete | C30/37; prescribed strength 37.0 N/mm²; test-day strength 52.6 N/mm² |
| Drive mechanism | Hydraulic |
| Power supply | 3-phase 400 VAC, 50 Hz — verify against the selected system datasheet |
| Opening / closing time | Manufacturer-stated 3–6 seconds; confirm the selected configuration |
| Emergency fast operation | Manufacturer-stated approx. 2 seconds; confirm the selected configuration |
| Safety and access-control options | Photocells, loop detectors, microwave radar, PLC, RFID, intercom and traffic lights — options to be confirmed |
| Other crash-test standards | Not established by report 22678-5024-20208-EN; separate, applicable evidence is required for other standards or equivalency claims |

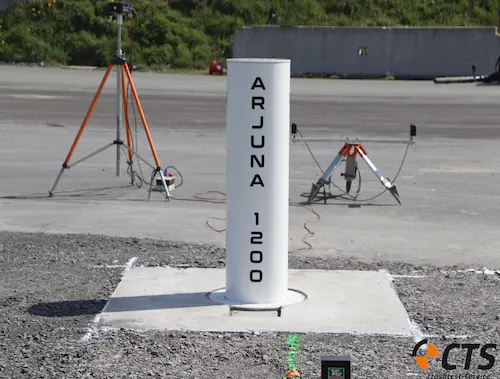

Test imagery for the ARJUNA 1200 (SAB 1200) hydraulic bollard, linked to report 22678-5024-20208-EN and the ISO 22343-1:2023 test procedure. Use only the tested product and foundation configuration when describing the result.
Impact-sequence image extracted from the ARJUNA 1200 test report. The recorded test used a 7,186 kg N2A vehicle at 79.6 km/h and an impact angle of 90.3°.
Watch the ARJUNA 1200 (SAB 1200) crash-test video to view the product's impact-test demonstration.
Note: Classification and penetration results apply to the exact tested ARJUNA 1200 configuration and foundation arrangement. The report does not by itself establish certification under ASTM F2656, PAS 68, IWA 14-1 or DOS.
Secure Innovative offers automatic retractable and shallow-mount fixed bollard models across its product range. Compare model dimensions and access requirements against your project needs. For ARJUNA 1200 (SAB 1200), the report-based ISO 22343-1:2023 result is V/7200[N2A]/80/90:0.9/34.7; other standard equivalencies must be supported by separate evidence.
| Feature |
Automatic Arjuna 400 |
Automatic Bollard Arjuna 1200 |
Fixed Shallow 4 |
Fixed Shallow 8 |
Fixed Shallow 12 |
|---|---|---|---|---|---|
| Crash-Test Classification | Refer to applicable test report |
V/7200[N2A]/80/90:0.9/34.7
ISO 22343-1:2023 |
Verify model-specific report | Verify model-specific report | Verify model-specific report |
| Vehicle Impact Speed | Confirm from test report |
Target: 80 km/h
Actual: 79.6 km/h |
Confirm from test report | Confirm from test report | Confirm from test report |
| Operation Type | Automatic Retractable | Automatic Retractable | Fixed Permanent | Fixed Permanent | Fixed Permanent |
| Foundation Depth | Confirm from approved drawings |
2,260 mm excavation depth
2,160 mm foundation thickness |
Confirm from approved drawings | Confirm from approved drawings | Confirm from approved drawings |
| Emergency Fast Operation | Confirm from technical datasheet | Approx. 2 seconds* | Not Applicable | Not Applicable | Not Applicable |
| Recommended Applications | Commercial & Active Vehicle Lanes | Military, Airports & Critical Infrastructure | Pedestrian Zones & Perimeters | Government & Embassy Protection | High-Security Zones |
| Request Quote | Get Quote → | Get Quote → | Get Quote → | Get Quote → | Get Quote → |
Technical note: Crash-test classification, impact speed and foundation requirements depend on the exact product configuration and installation. Confirm these details against the applicable independent test report and approved installation drawings before using them for project specifications.
*Emergency fast-operation time must be confirmed against the approved technical datasheet for the supplied configuration.
