Vehicle Entrance Control & Perimeter Security Solutions
Secure Innovative Solutions LLP presents the Arjuna 4 (Shallow 4) fixed bollard for permanent vehicle-access restriction and perimeter security. Fixed bollards remain in place rather than retracting, making them a consideration for entrances and boundaries where vehicle access needs to be restricted continuously.
The available certificate records impact testing to ISO 22343-1:2023 and the classification shown in the technical table below. The certificate does not itself state a K4 or M30 classification. Use those designations in a project specification only when separate supporting documentation confirms they apply to this exact model and configuration.
For project planning, review bollard placement and spacing, required vehicle opening, foundation and civil-work conditions, underground utilities, material/finish requirements and site-specific security objectives. Confirm technical values against the approved product datasheet and installation drawings before procurement or construction.
Product type: Fixed triple bollard
| Model | ARJUNA 4 (SAB 4) |
| Product Type | Fixed Bollard — confirm against the approved product drawing |
| Impact-Test Standard | ISO 22343-1:2023 |
| Certificate Number | TC-22678-5024-20380-EN |
| Test Vehicle Category | N2A |
| Vehicle Mass | 7,200 kg (as recorded in the performance classification) |
| Impact Speed | 48 km/h |
| Impact Angle | 90° |
| Impact Point | Centre line of VSB |
| Kinetic Energy at Impact | 658 kJ |
| Performance Classification | V/7200[N2A]/48/90:3.8/29.5 |
| Foundation / Installation Configuration | Refer to CTS test report 22678-5024-20380-EN and the approved installation drawings |
| Above-Ground Height and Diameter | Confirm against the approved product drawing |
| Material and Finish | Refer to the applicable product datasheet |
Technical note: Do not publish a fixed foundation depth, above-ground height, diameter or standards list unless confirmed by approved model-specific drawings or documentation. Foundation dimensions alone do not establish crash-test performance.
Impact-test documentation for the Arjuna 4 (SAB 4) fixed bollard is recorded against ISO 22343-1:2023. The certificate lists the classification shown below. Images and video published here should depict the exact tested product and configuration.

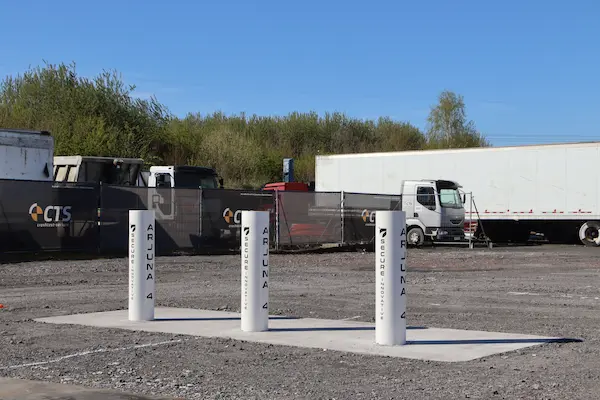

Product visual for identification. This image is not presented as a photograph of the impact test.
Add the verified video for the exact ARJUNA 4 (SAB 4) tested configuration here.
Video embed pending confirmation. Do not use footage of another bollard or test configuration as evidence for this model.
Test details recorded: 7,200 kg N2A vehicle, 48 km/h impact speed, 90° impact angle, kinetic energy 658 kJ. The classification applies to the tested configuration; refer to the test report and approved drawings for installation details.
Fixed bollards may be considered for permanent vehicle-access restriction at commercial entrances, government facilities, industrial sites, transport facilities, data centres and other sites where the project security assessment calls for a permanent physical barrier. Final placement and suitability depend on site design and the documented performance of the selected configuration.
For projects requiring a different fixed bollard configuration, review the related models and confirm their technical details separately. The label used for one model does not establish the tested performance of another.
Fixed bollard selection should be based on each site's vehicle-access requirements, security assessment, layout and applicable product documentation.
Arjuna 4 (Shallow 4) is a fixed bollard model intended for permanent vehicle-access restriction. It remains in place and does not retract to permit vehicle movement. Confirm its exact configuration and technical details in the applicable product datasheet.
K4 / M30 is the designation used in the current product information. Before specifying an impact rating, check the exact classification, test standard, impact conditions and certificate scope in the applicable report for this model. Do not assume that K and M designations or different standards are equivalent without supporting documentation.
Arjuna 4 is presented as a shallow-mounted fixed bollard. The exact foundation depth and civil-work requirements should be confirmed from the approved model-specific installation drawings before construction.
Request and review the applicable impact-test report or certificate for the exact Arjuna 4 configuration. Confirm the stated standard, tested vehicle, impact conditions, classification and certificate scope before using a crash-performance claim in procurement specifications.
Fixed bollards may be considered at commercial, industrial, government and other controlled-access sites where permanent vehicle-access restriction is required. Suitability depends on the site's security assessment, layout and the documented performance of the selected configuration.
Refer to the approved Arjuna 4 product datasheet for material grade, surface finish, above-ground height, diameter and other dimensions. Confirm the selected finish and installation details for the project before ordering.
Use the enquiry form on this page and specify Arjuna 4 (Shallow 4), your project location and intended application. You can enquire about available product datasheets, approved installation drawings and applicable impact-test documentation.
Contact Secure Innovative Solutions LLP to confirm installation guidance, commissioning, maintenance and technical-support arrangements available for your project location and selected configuration.
Fixed Bollard Solutions for Vehicle Entrance Control
Explore fixed bollard options for permanent access restriction and perimeter security. Product selection should follow the site's requirements and the applicable model-specific documentation.
Need another perimeter security product? Explore Bollards, Road Blockers and Crash-Rated Gates.
Before selecting Arjuna 4, confirm the intended application, site layout, required vehicle opening, bollard spacing, civil-work constraints and any required impact-test classification.
Use the approved drawings for foundation design and check applicable test documents for the exact model and tested configuration. If the project requires a specific standard or performance class, share that requirement with the team before finalising the specification.
Visit our FAQs or contact our team for product and installation enquiries.
We supply Crash-Rated Fixed Bollards, Crash-Rated Bollards, Road Blockers, Boom Barriers, Access Control & Perimeter Security Solutions for projects across India and selected international markets. Our listed service areas include major Indian cities such as Ahmedabad, Bengaluru, Chennai, Delhi, Hyderabad, Kolkata, Mumbai, Pune and Surat, alongside other locations nationwide.
We also handle enquiries from international markets across the Middle East, Europe, North America, Africa and Asia. Contact our team to confirm product availability and service arrangements for your project location.
Explore our location list below and contact us to discuss the availability of fixed bollard solutions in your region.
Tell us about your Arjuna 4 fixed bollard enquiry and our team will review your project requirements.
