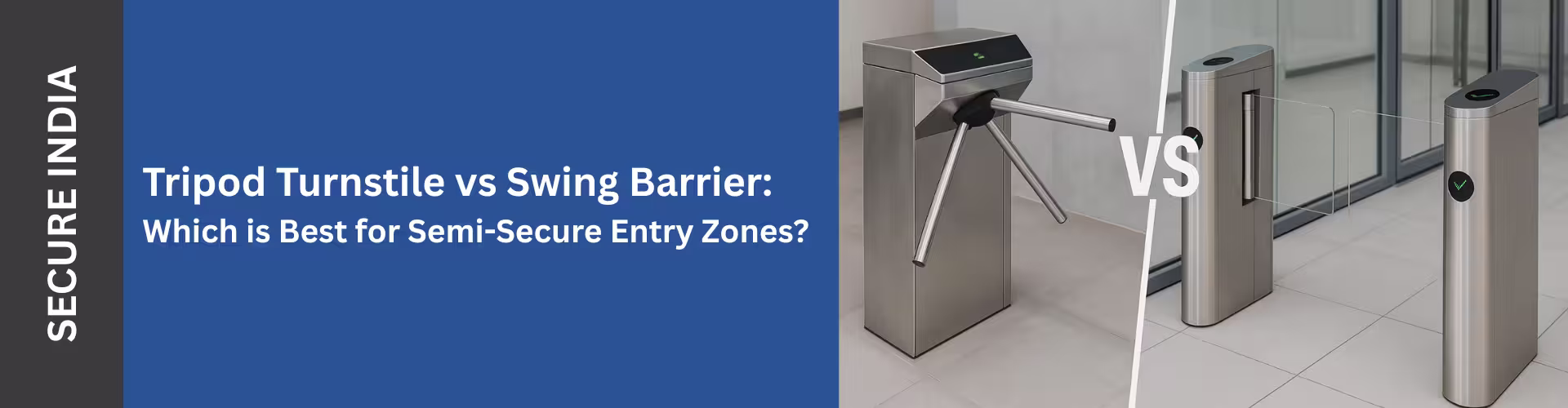

Tripod Turnstile vs Swing Barrier: Which Is Best for Semi-Secure Entry Zones?
Quick answer: A tripod turnstile uses three rotating arms in a standard 550mm lane — best for gyms, schools, and employee entrances needing moderate security. A swing barrier uses a wider (600-900mm), wheelchair-accessible motorized panel — best for airports, libraries, and IT parks needing accessible, higher-throughput access.
Controlling pedestrian access is crucial in semi-secure locations like gyms, schools, and corporate offices. Two commonly used entry systems are tripod turnstiles and swing barriers. This blog helps you understand their differences in terms of design, control, and user experience.
What is a Tripod Turnstile?
A tripod turnstile is a waist-high access control system with three rotating arms. It restricts access to one person at a time and often integrates with access control systems like RFID or biometric readers.
What is a Swing Barrier?
Swing barriers use a motorized panel that opens like a gate when access is granted. They provide wider access than turnstiles and are better suited for people with luggage, wheelchairs, or carts.
Where Are They Used?
- Tripod Turnstiles: Educational institutions, gyms, employee entrances
- Swing Barriers: Airports, libraries, IT parks, accessible lanes
Comparison Table
| Feature | Tripod Turnstile | Swing Barrier |
|---|---|---|
| Access Width | Standard (550 mm) | Wide (600–900 mm) |
| Security Level | Medium | Low to Medium |
| Tailgating Prevention | Good | Moderate |
| Accessibility | Not suitable for wheelchairs | Wheelchair accessible |
| Throughput | Moderate | High |
| Best For | Cost-conscious, moderate-security sites | Accessible, high-traffic sites |
Which One Should You Choose?
Tripod turnstiles are best for controlling foot traffic with moderate security at a lower cost. Swing barriers offer better accessibility and aesthetics for modern buildings with higher visitor throughput, including wheelchair users and those with luggage or carts.
Frequently Asked Questions
What is the main difference between a tripod turnstile and a swing barrier?
A tripod turnstile is a waist-high system with three rotating arms that restricts access to one person at a time in a standard-width lane. A swing barrier uses a motorized panel that opens like a gate, offering a wider, wheelchair-accessible lane suited to luggage and carts.
Which is more accessible, a tripod turnstile or a swing barrier?
Swing barriers are more accessible since their wider lane (600-900mm) accommodates wheelchairs, luggage, and carts. Tripod turnstiles have a standard 550mm lane and are not suitable for wheelchair access.
Which offers better tailgating prevention, a tripod turnstile or a swing barrier?
Tripod turnstiles generally offer better tailgating prevention due to their physical rotating arms. Swing barriers offer moderate tailgating prevention, prioritizing throughput and accessibility over maximum restriction.
Where are swing barriers typically installed?
Swing barriers are typically installed at airports, libraries, IT parks, and accessible lanes where wider access for luggage, wheelchairs, or carts is required.
Where are tripod turnstiles typically installed?
Tripod turnstiles are typically installed at educational institutions, gyms, and employee entrances where moderate security and cost-efficiency are priorities.
